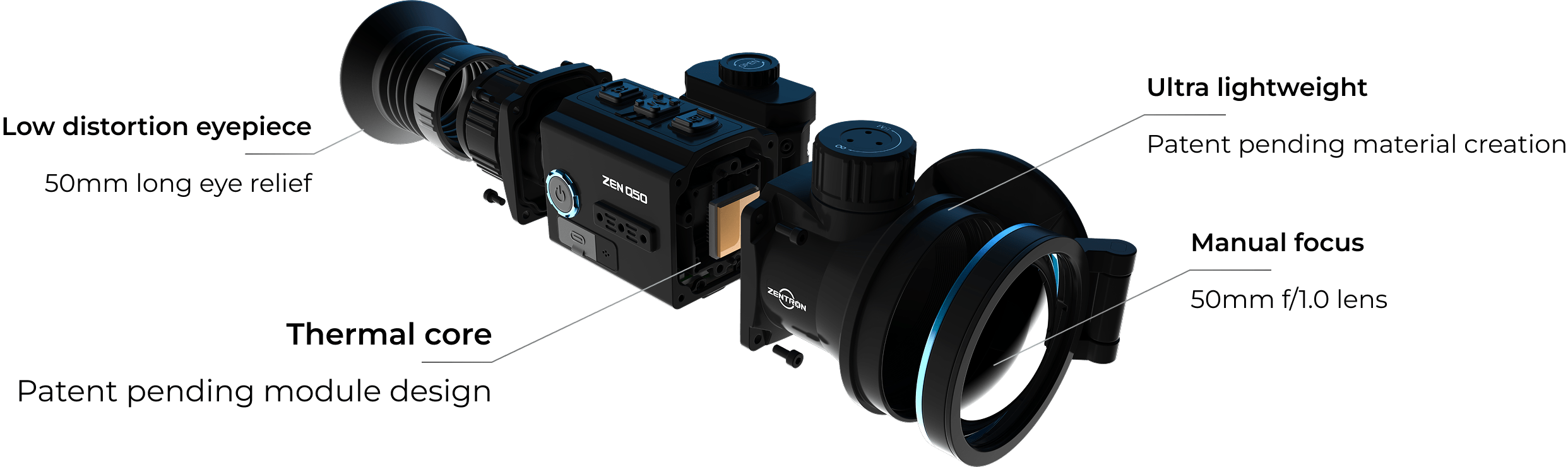

Highlight features

Zentron Q50 highlight features overview

Lightweight

Zentron Q50 lightweight design

2600m

Detection range

Digital compass

Digital compass feature

Auto screen off

Auto screen off saving feature

IP 67

Protection level

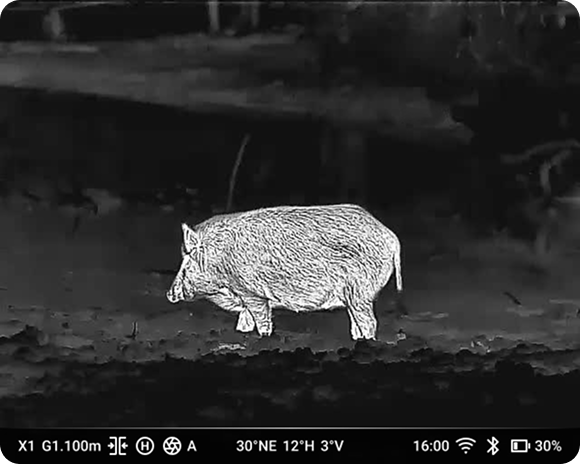

Excellent imaging quality

High-performance, high-sensitivity thermal detector that captures minute temperature changes for imaging. This technology provides detailed images that accurately reproduce complex hunting scenes.

Excellent imaging quality demonstration

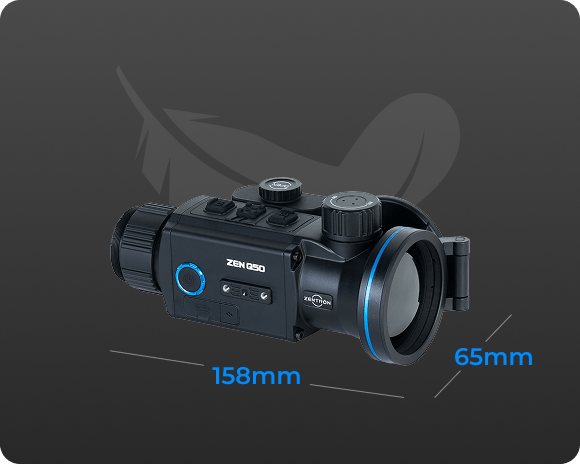

Compact & Lightweight

At 423g the ZEN Q series is made of a special synthetic magnesium-aluminium that is durable and lightweight.

Compact and lightweight casing

Extra-long battery life

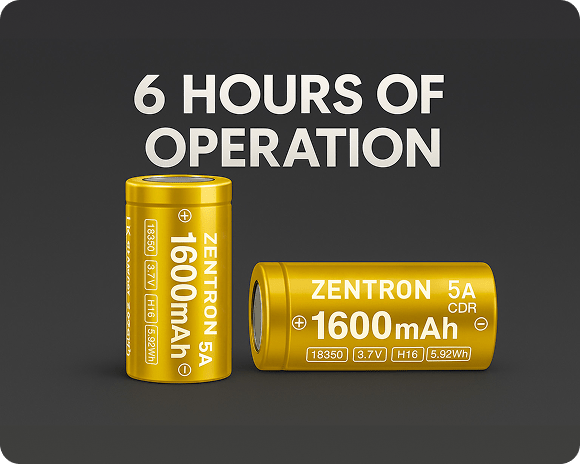

Zen Q series is powered by dual 18350 batteries, delivering up to 6 hours of continuous operation per set. Each unit comes with 4 rechargeable batteries and charger.

Dual rechargeable 18350 batteries

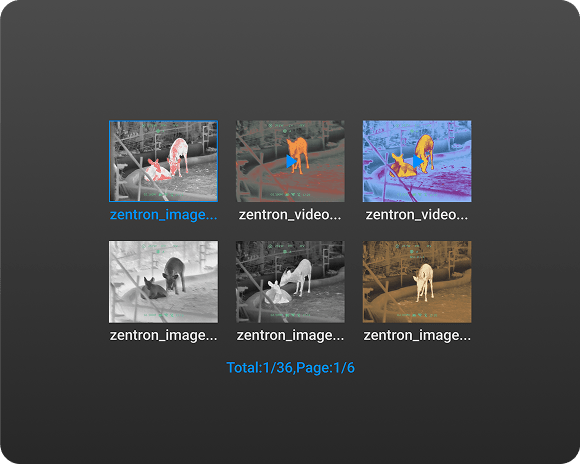

Media library

Users are able to seamlessly view, organize, and manage images and videos directly on the device. Making it super easy to select, share, and analyze on the spot.

Media library menu interface

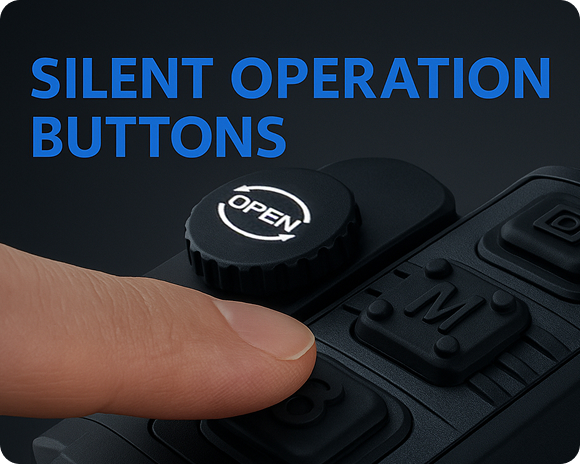

Silent operation buttons

Designed for stealthy operations such as hunting or tactical applications. These buttons minimize sound to avoid alerting game or disrupting the environment.

Silent operation rubberized buttons

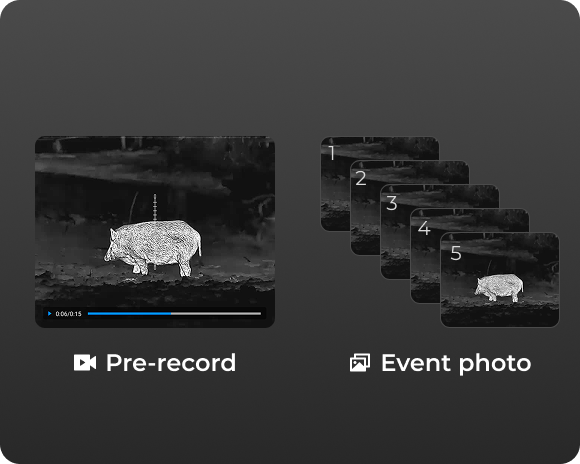

Pre-record

Connecting to the ZEN LINK APP allows thrilling videos captured before and after shooting to be automatically transferred to phone.

Zen Link app pre-record sync

INTEGRATED LASER RANGEFINDER

Q50R

Laser Range FinderDigital Compass

PRECISION RANGEFINDING

Built-in LRF, accelerometer and geomagnetic sensor support ultra-precise shooting in total darkness.

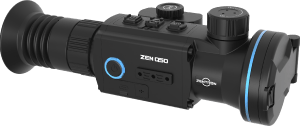

Zentron Q50R thermal scope with integrated laser rangefinder
Q50R aiming point settingsQ50R laser rangefinder thermal view

Technical Specifications

  • ZEN SeriesQ50RQ50Q635Q35
  • Detector TypeVOx Uncooled
  • Resolution640×512640×512640×512384×288
  • Pixel Size12μm
  • Framerate50Hz
  • Spectral range8~14um
  • NETD≤18mK≤20mK
  • Optics
  • Objective Lens50mm f1.050mm f1.035mm f1.035mm f1.0
  • Field of View8.7°(H) × 7°(V)8.7°(H) × 7°(V)12.5°(H) × 10°(V)7.5°(H) × 5.6°(V)
  • Close-up range5m
  • Detection Range2600m2600m1800m1800m
  • Optical magnification2.3×2.3×1.6×2.3×
  • Laser rangefinder
  • Safety class for laserClass 1---
  • Wavelength905nm---
  • Max. measuring range1200m---
  • Measurement accuracy±1---
  • Min. measuring range5m---
  • Display Parameters
  • Display TypeOLED
  • Display Resolution1920 × 10801920 × 10801920 × 1080800×600
  • Functions
  • E-zoom2.3~18.4×2.3~18.4×1.6~12.8×2.3~18.4×
  • PalettesWhite/Black/White highlight/Cold green/Green white...
  • Reticle type8
  • Reticle colours6 (5 colours, 1 auto colour)
  • Wifi & Bluetooth & MicSupport
  • Built-in memory64GB64GB64GB32GB
  • P.I.P×2/×4/×8
  • Eye Relief52mm
  • Diopter Range-5~+5
  • Electronics
  • Battery2 × 18350
  • Max. Battery Life6 hours7 hours
  • USB InterfaceTYPE-C
  • Size158×65×74mm158×65×74mm150×65×63mm150×65×63mm
  • Weight474g423g445g445g
  • Environmental
  • Housing MaterialMagnesium
  • Protection LevelIP67
  • Operation Temp-20℃~50℃
  • Storage Temp-40℃~50℃
  • Max. Recoil1200g/ms

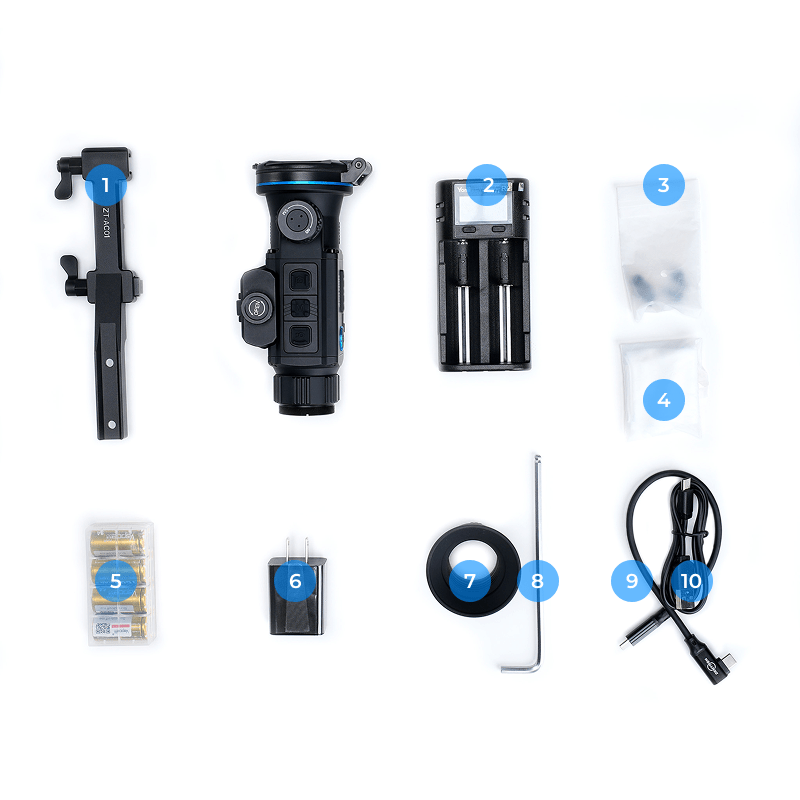

Accessories

1. Picatinny mount

2.6.10. Battery charger set

3. Screws

4. Wipe cloth

5. Batteries

7. Eyecup

8. L-Screwdriver

9. Type-C USB cable

Zentron Q50 included accessories kit
